Motor Explosion View

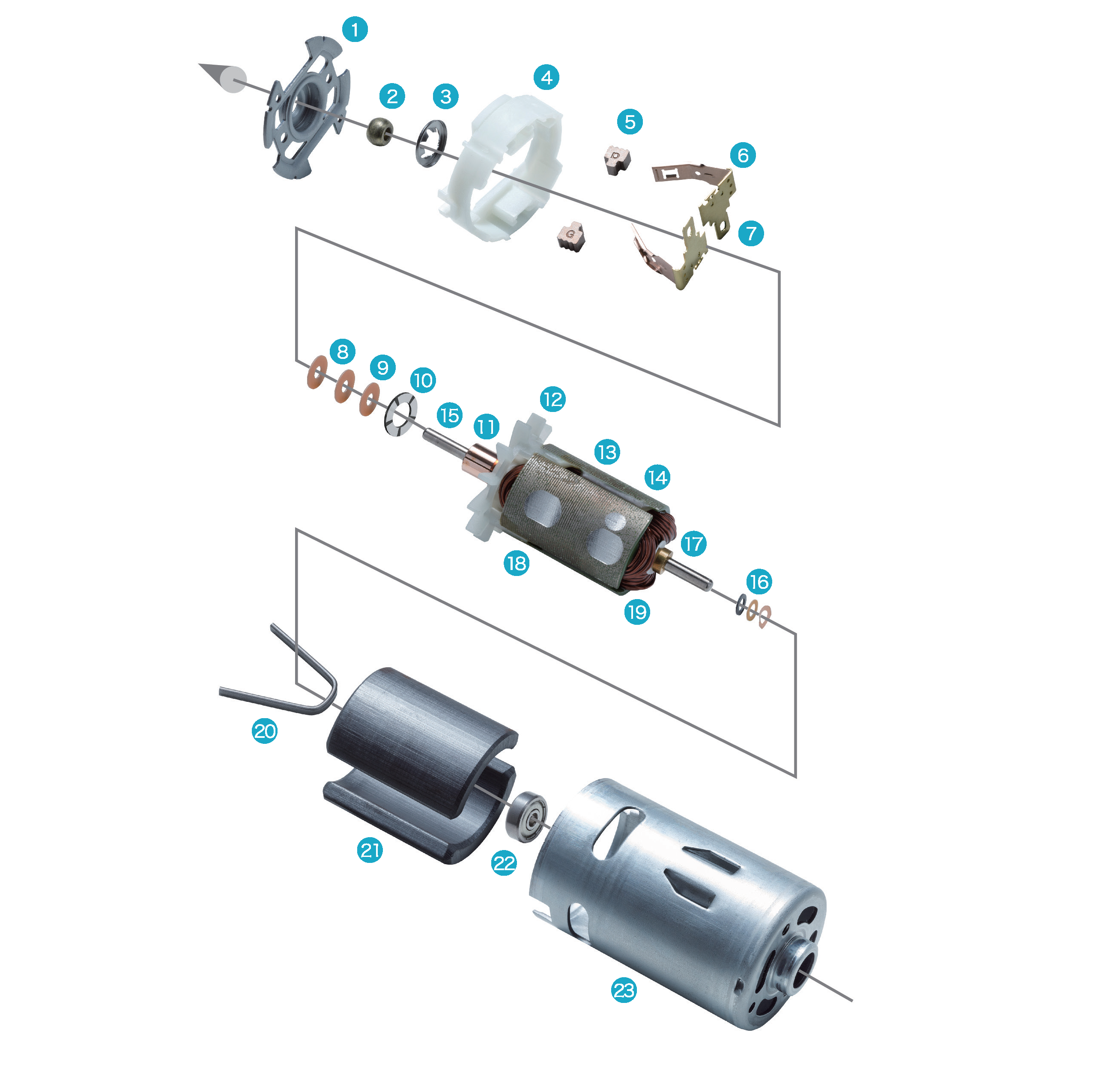

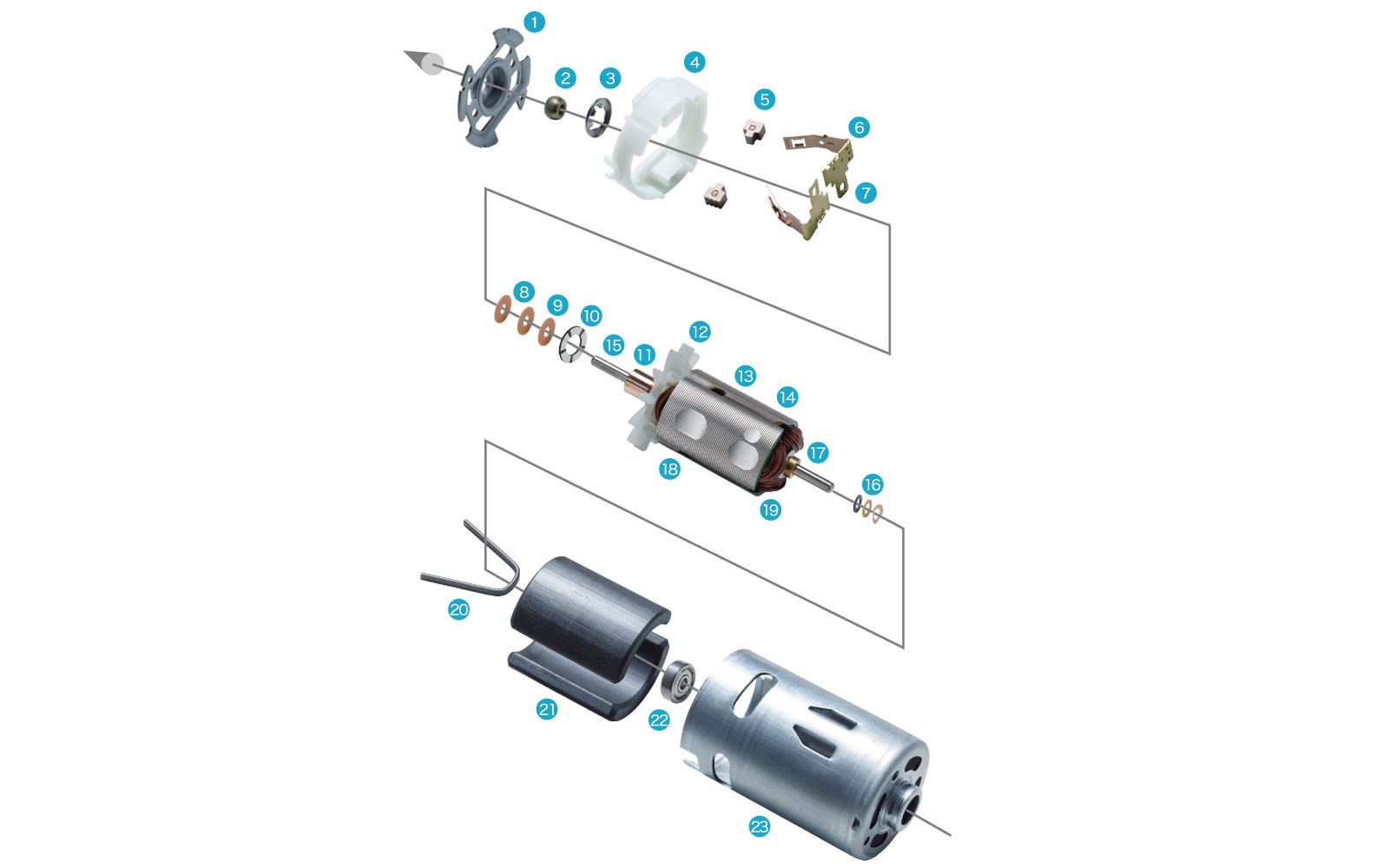

Brush DC Motor

1. METAL REAR END BELL
2. SPHERICAL BEARING
3. BEARING BUSHING
4. PLASTIC PART
5. CARBON
6. BRUSH ARM
7. TERMINAL
8. WASHER
9. OIL SLINGER
10. DISK VARISTOR
11. COMMUTATOR
12. FAN
13. LAMINATION
14. INSULATION RESIN
15. SHAFT
16. ADJUSTING WASHER
17. ROTOR RETAINER
18. MINUS BALANCING
19. ENAMELED WIRE
20. MAGNET PIN
21. MAGNET
22. BALL BEARING
23. HOUSING

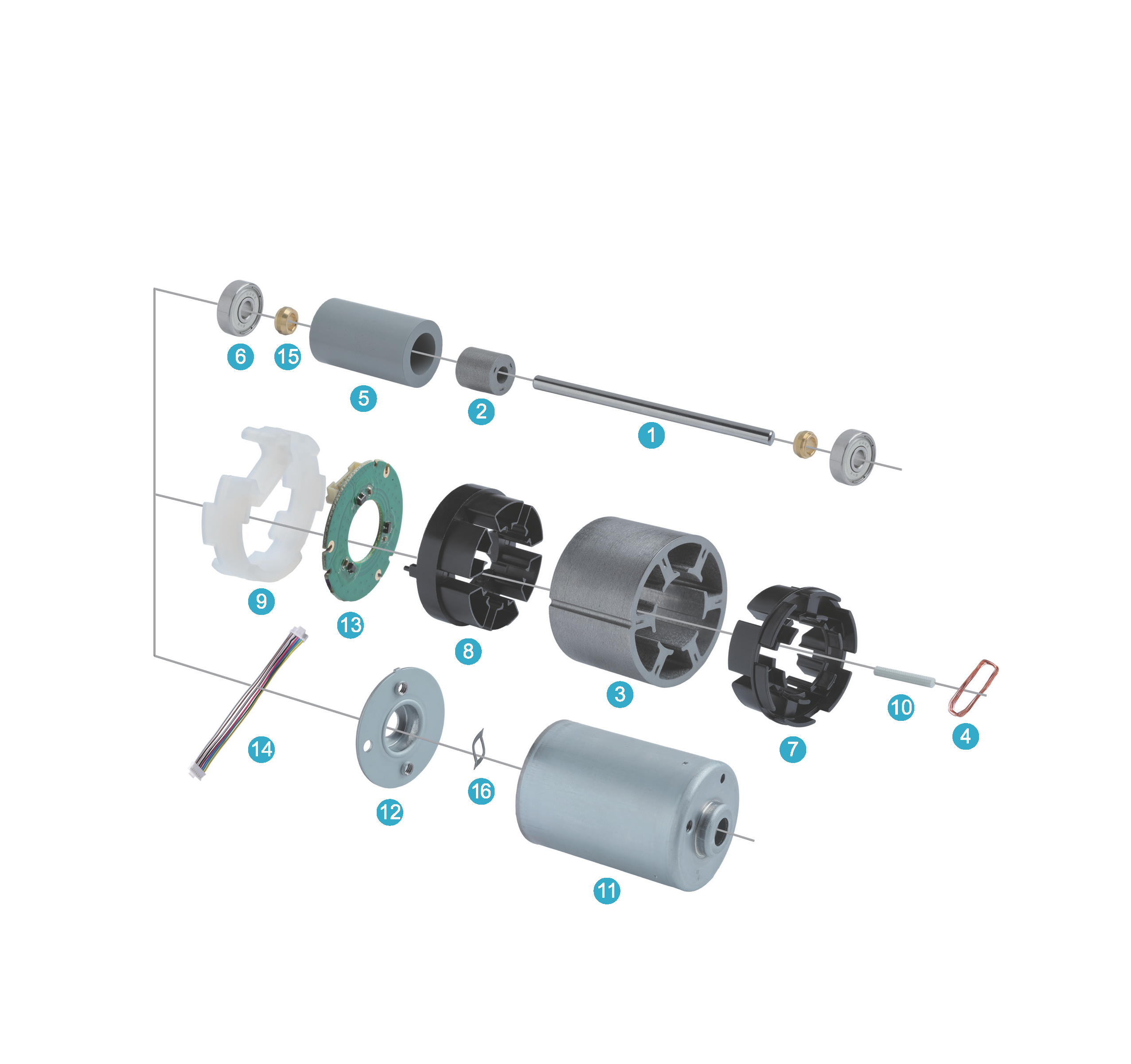

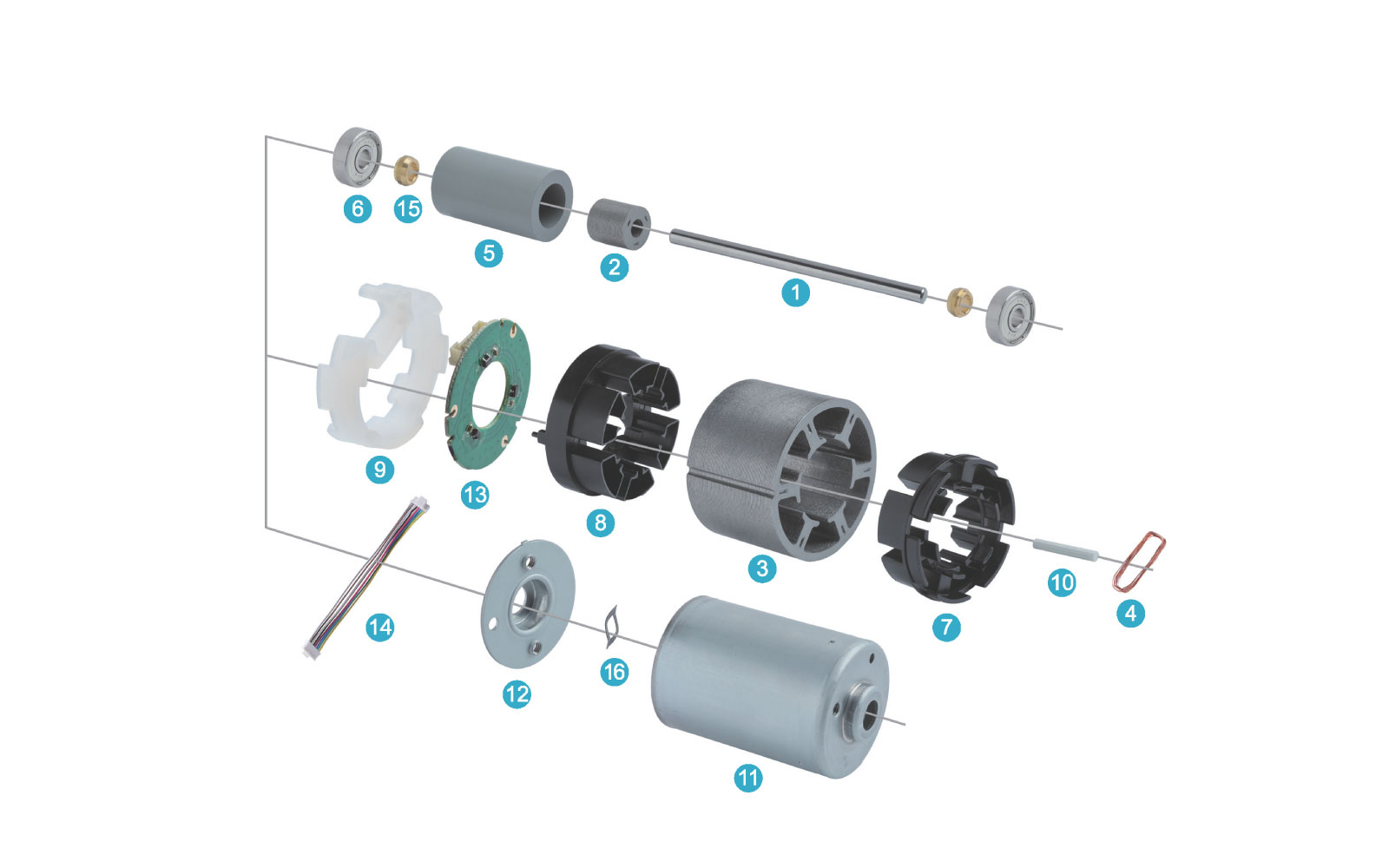

Brushless DC Motor

1. SHAFT
2. ROTOR LAMINATION
3. STATOR LAMINATION
4. ENAMELED WIRE
5. MAGNET
6. BALL BEARING
7. FRONT BOBBIN
8. REAR BOBBIN
9. MOTOR RUBBER GASKET
10. INSULATING VARNISHED SLEEVE
11. HOUSING
12. METAL REAR END BELL
13. HALL BOARD
14. LEAD WIRE
15. ROTOR RETAINER
16. SPRING WASHER

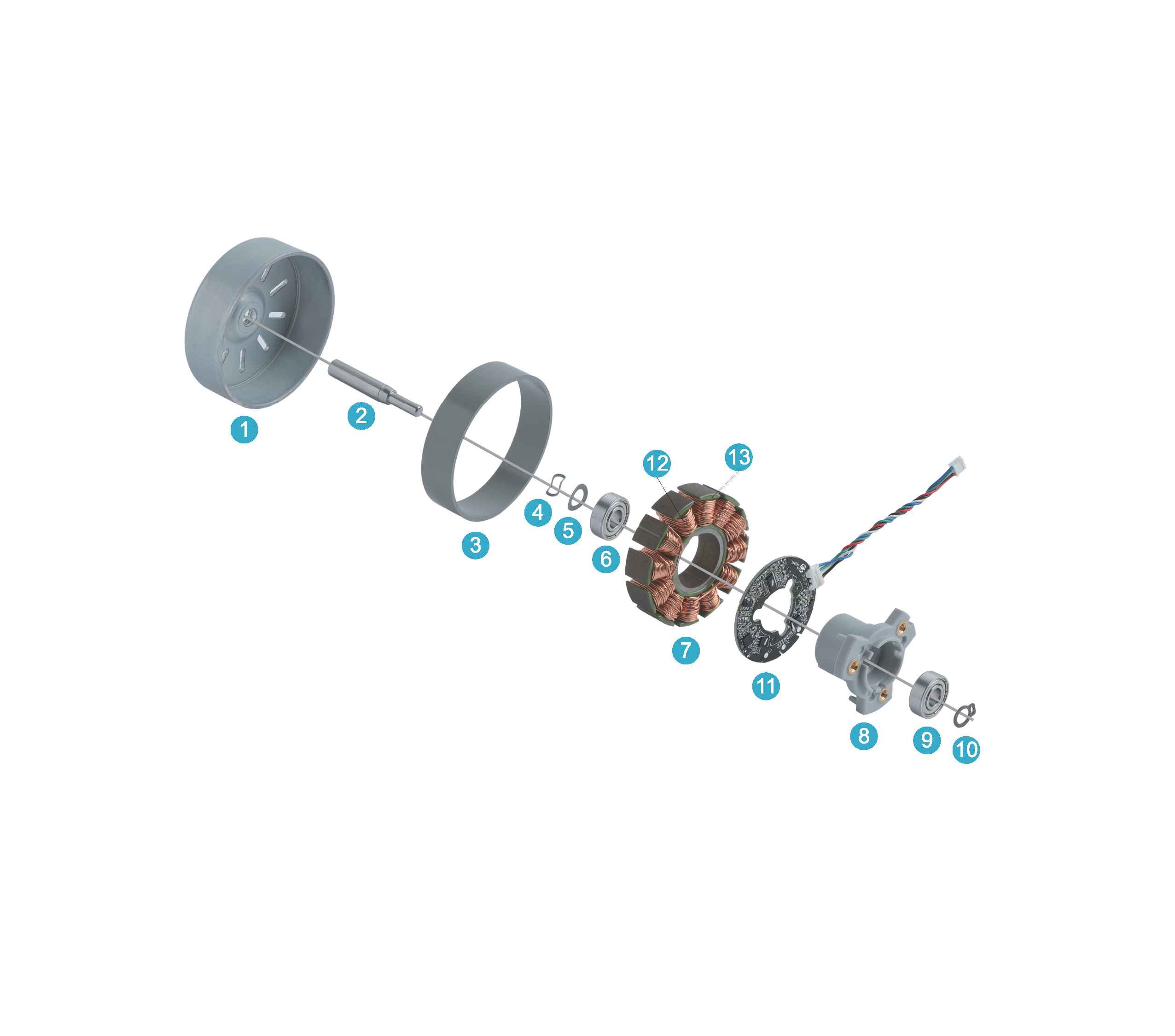

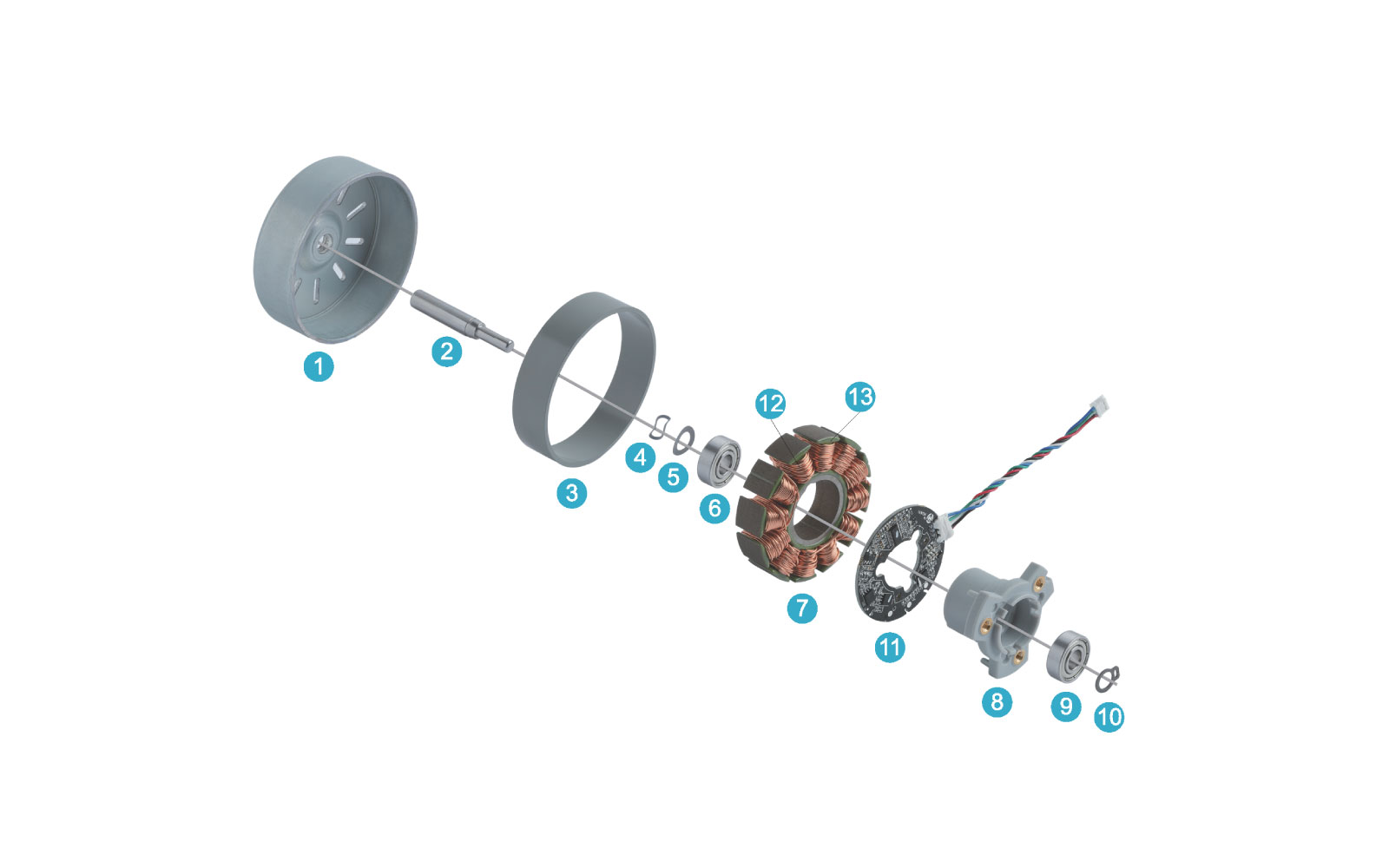

External Rotor Brushless DC Motor

1. HOUSING
2. SHAFT
3. MAGNET
4. SPRING WASHER
5. WASHER
6. BEARING
7. STATOR LAMINATION
8. BRACKET
9. BEARING
10. CIRCLIP
11. PCBA
12. WINDING
13. INSULATION RESIN
