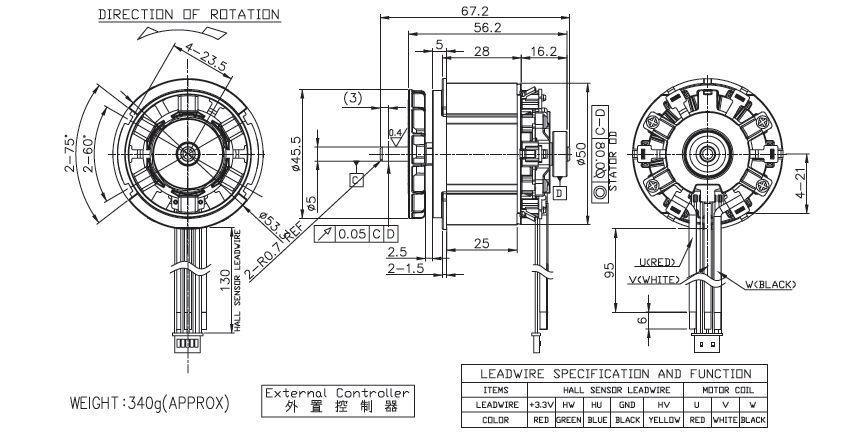

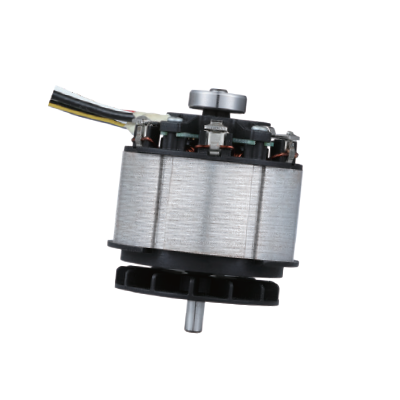

BL50F25Brushless DC Motor /Round Type
Application： Electric Hammer 、Impact Wrench 、Electric Drill
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

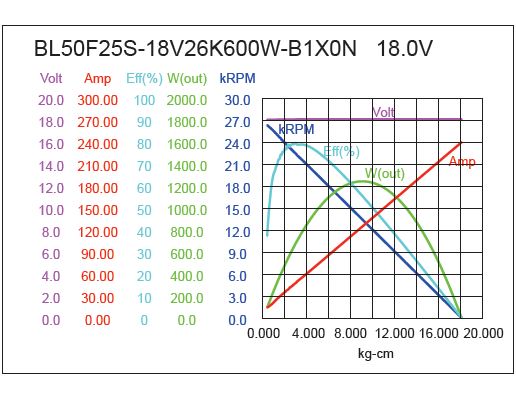

| BL50F25S-18V26K600W-B1X0N | 18.0-21.6V | 18.0V CONSTANT | 26000 | 6.20 | 22520 | 48.0 | 3000 | 294 | 704 | 82 | 240 | 18000 | 176 |

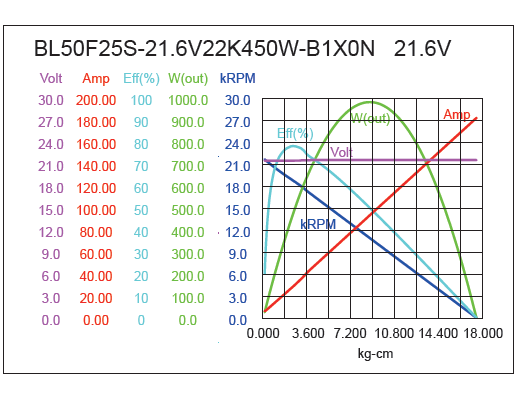

| BL50F25S-21.6V22K450W-B1X0N | 18.0-21.6V | 21.6V CONSTANT | 22000 | 5.20 | 19120 | 26.6 | 2200 | 215 | 446 | 79 | 182 | 17500 | 171 |
Please inquire your sales representative for output ,performance and EMC solution.
