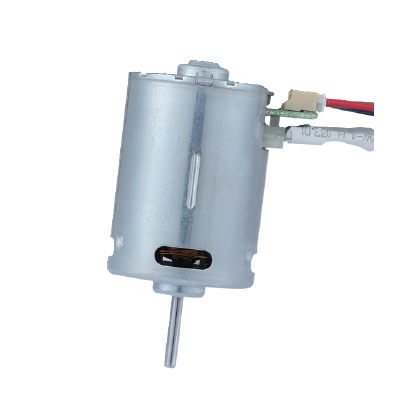

BL2838SBrushless DC Motor /Round Type
Application： Vacuum Cleaner
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| BL2838S-7V35K35W-B1X0N | 7.0-24.0 | 7.0V CONSTANT | 35842 | 1.40 | 29586 | 7.78 | 126.1 | 12.36 | 38.31 | 71 | 43.62 | 867.15 | 84.98 |

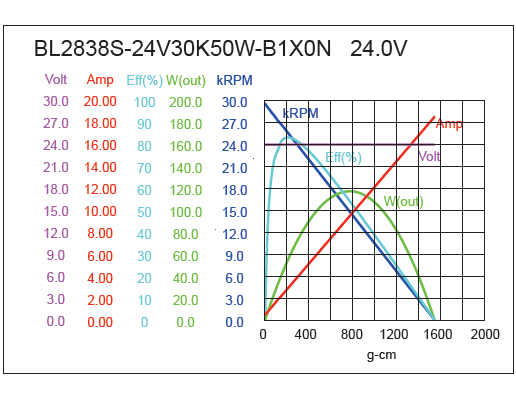

| BL2838S-24V30K50W-B1X0N | 7.0-24.0 | 24.0V CONSTANT | 30200 | 0.28 | 25613 | 2.90 | 211.4 | 20.72 | 55.61 | 84 | 18.57 | 1552.6 | 152.15 |
Please inquire your sales representative for output ,performance and EMC solution.
