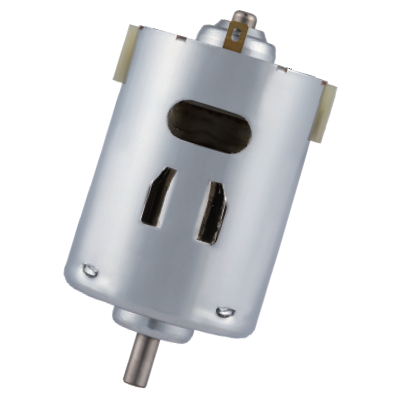

9812-9824Brush DC Motor /Round Type
Application： Sewing Machine
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

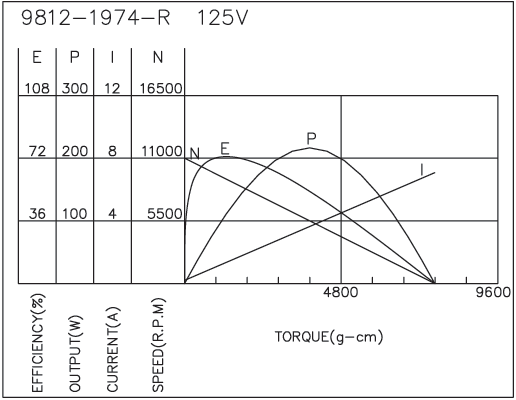

| 9812-1974-R | 90-150 | 125V CONSTANT | 11000 | 0.20 | 9300 | 1.05 | 999 | 97.94 | 96.24 | 73 | 7.08 | 7670 | 751.96 |

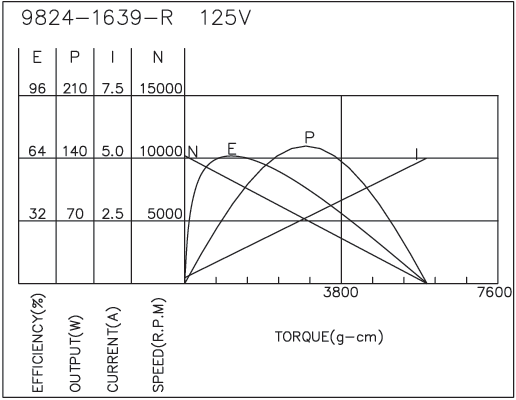

| 9824-1639-R | 90-150 | 125V CONSTANT | 10200 | 0.23 | 8200 | 1.15 | 1094 | 107.25 | 92.23 | 65 | 5.00 | 5880 | 576.47 |
Please inquire your sales representative for output ,performance and EMC solution.
